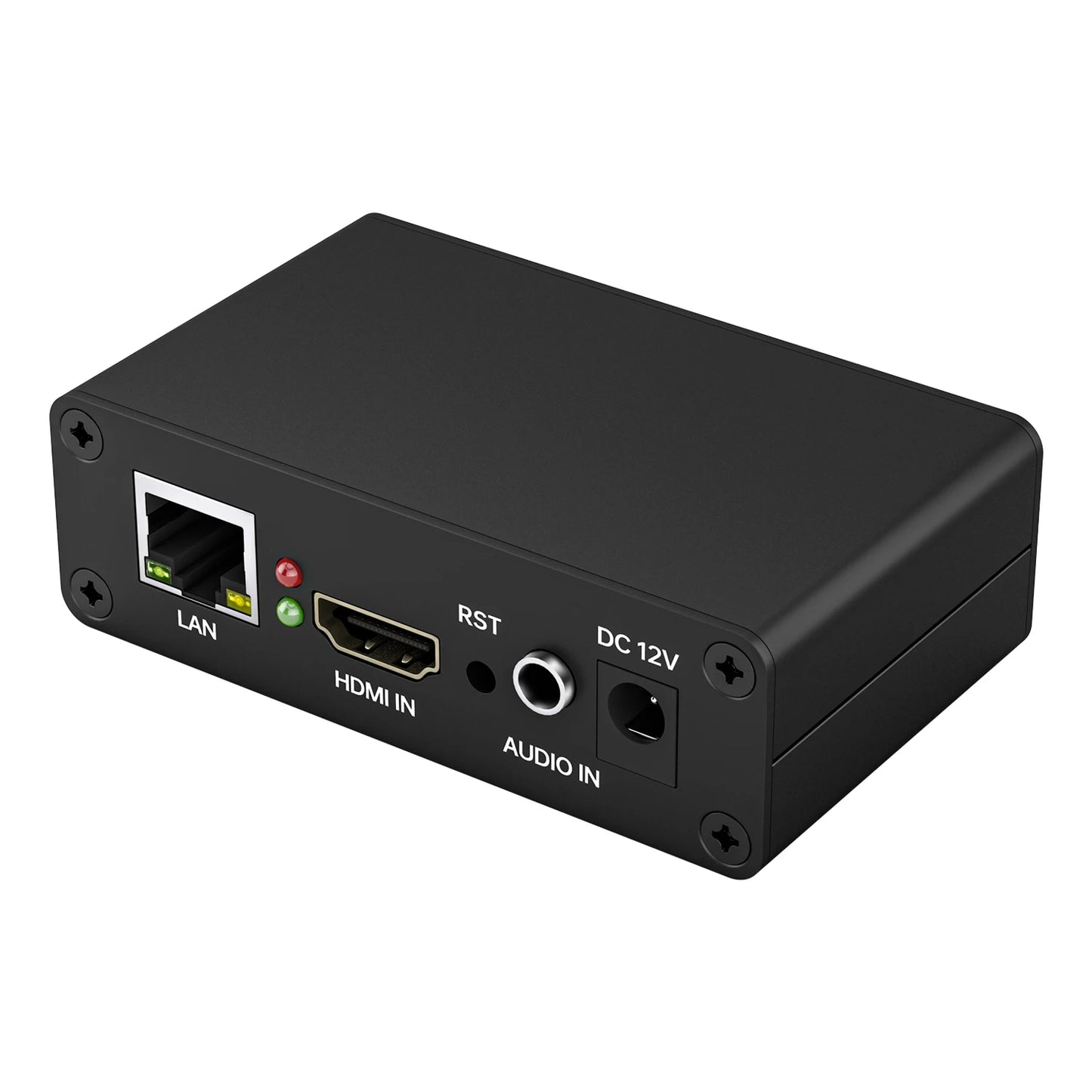

Low-Cost HDMI to IP HD Video Encoder System Integration Mini SRT RTSP RTMPS UDP ONVIF 1080p H265 H264 IPTV Live Stream Board
Low-Cost HDMI to IP HD Video Encoder System Integration Mini SRT RTSP RTMPS UDP ONVIF 1080p H265 H264 IPTV Live Stream Board
Couldn't load pickup availability

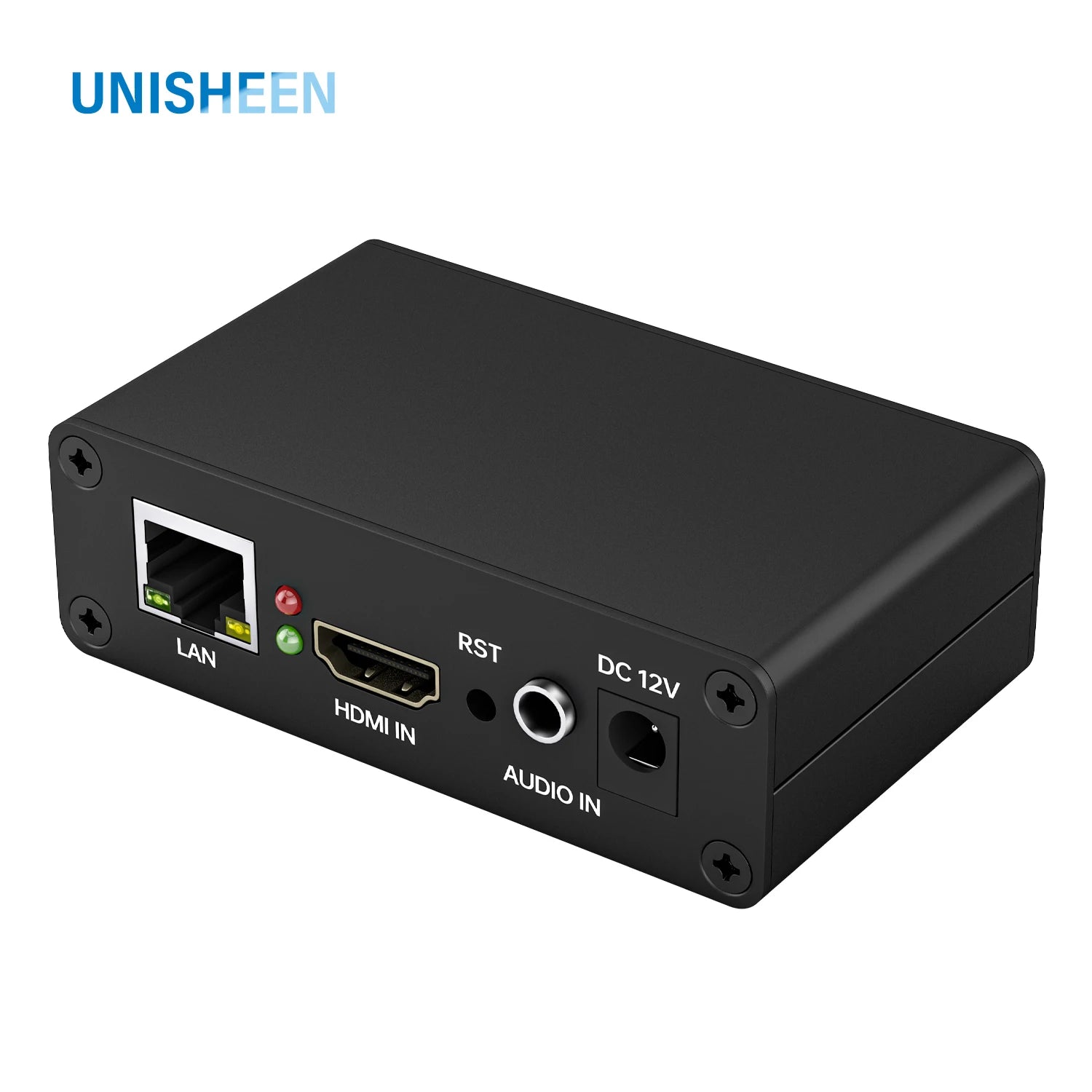

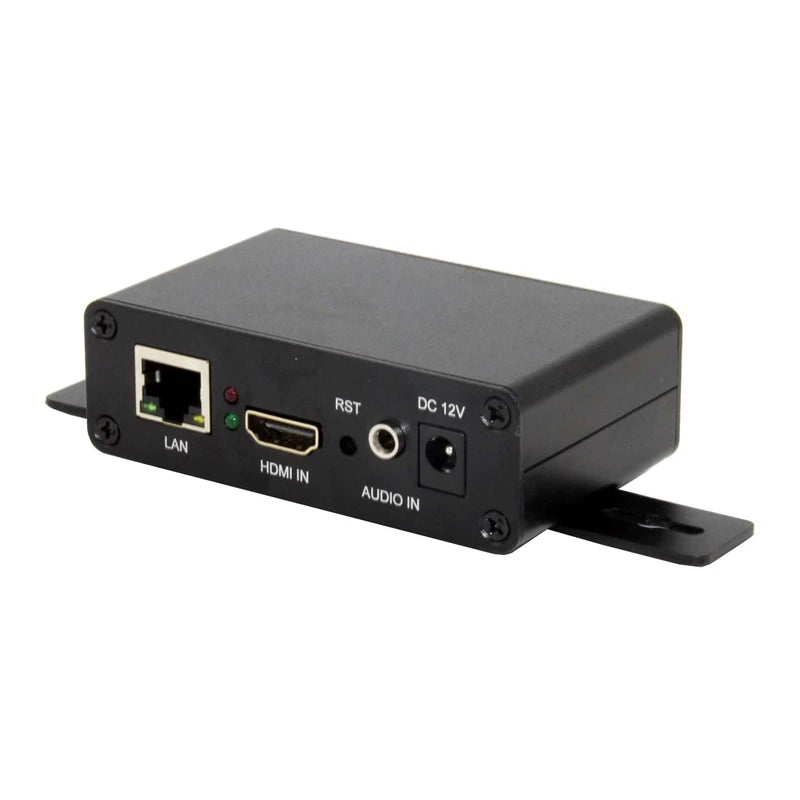

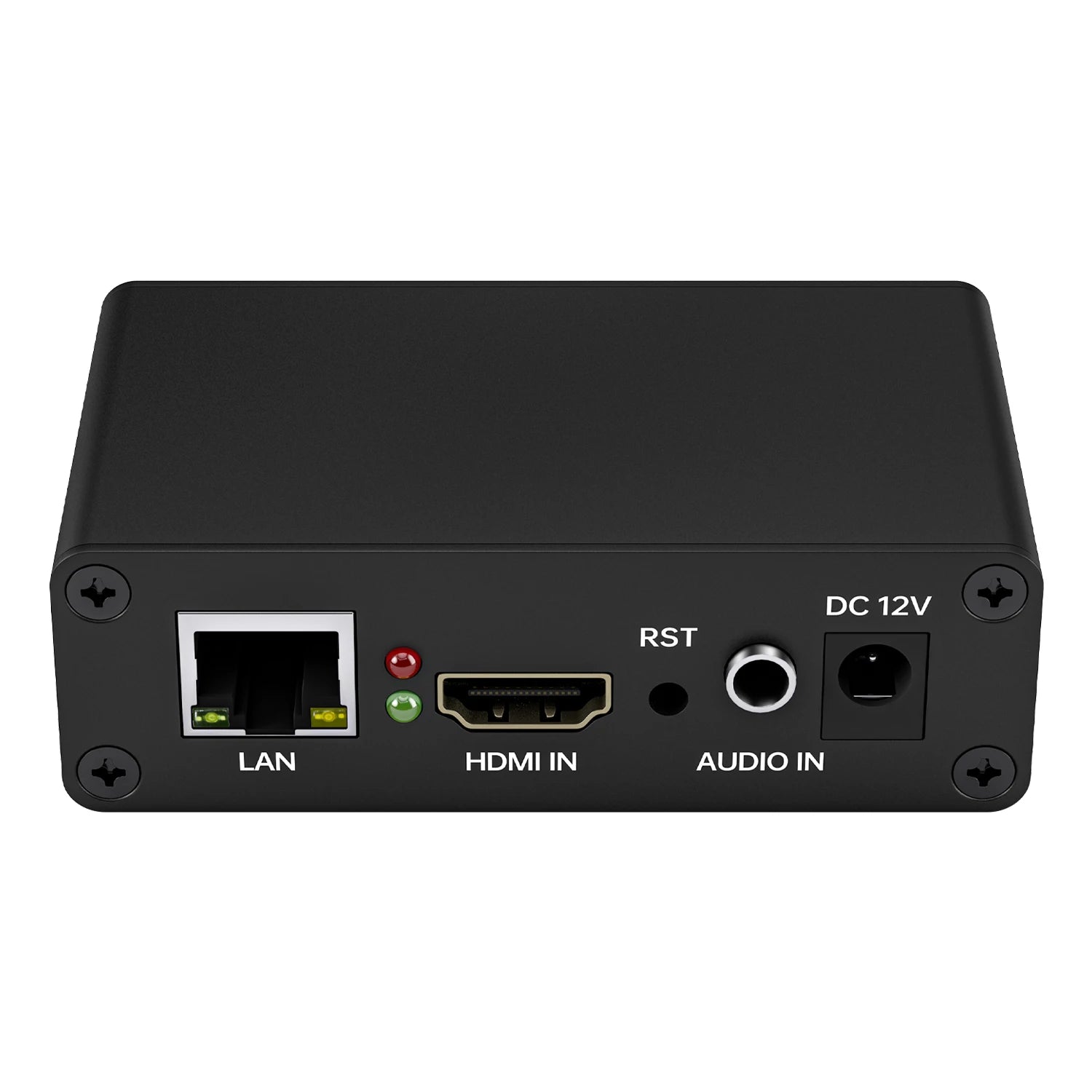

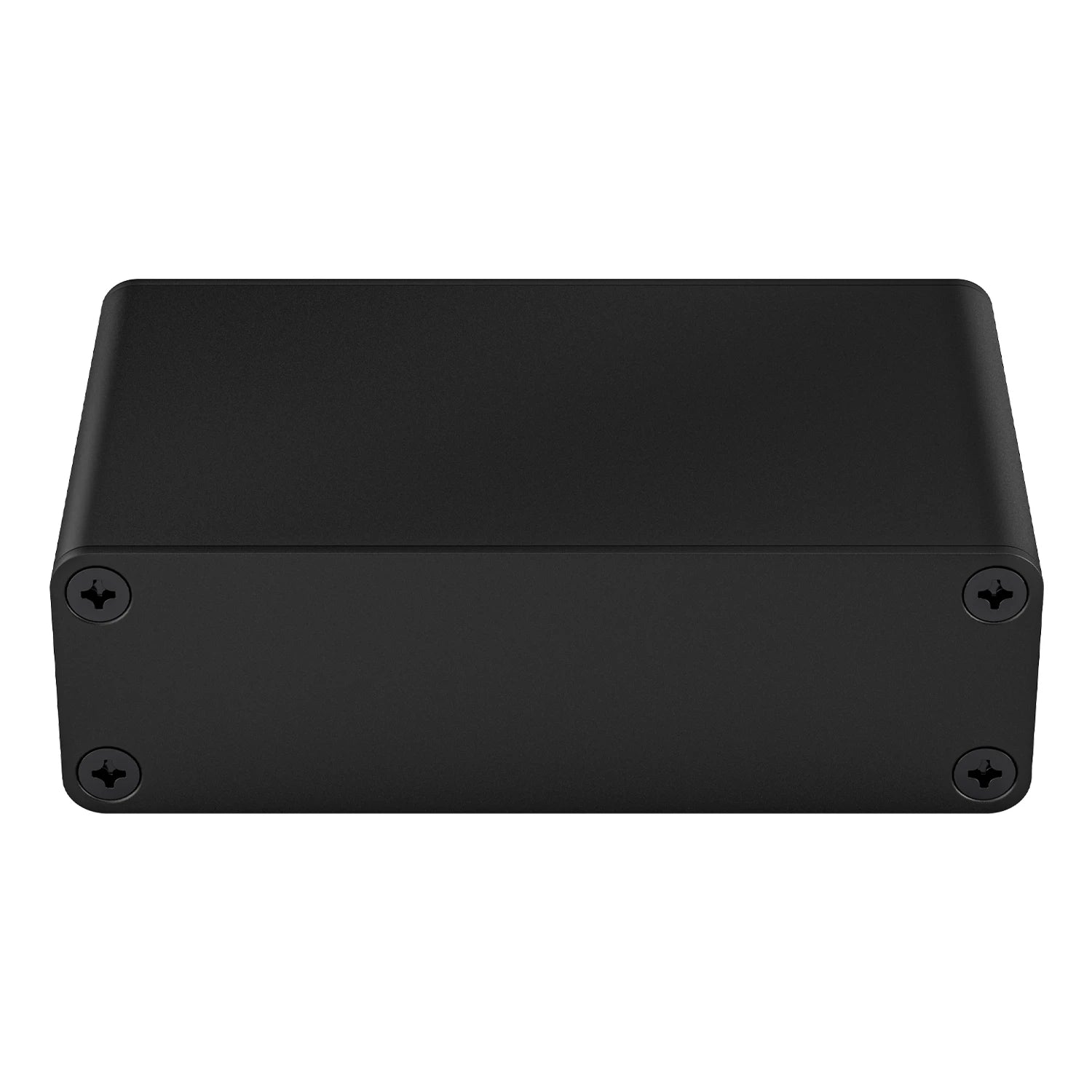

*BM1000H Device including Device&power supply

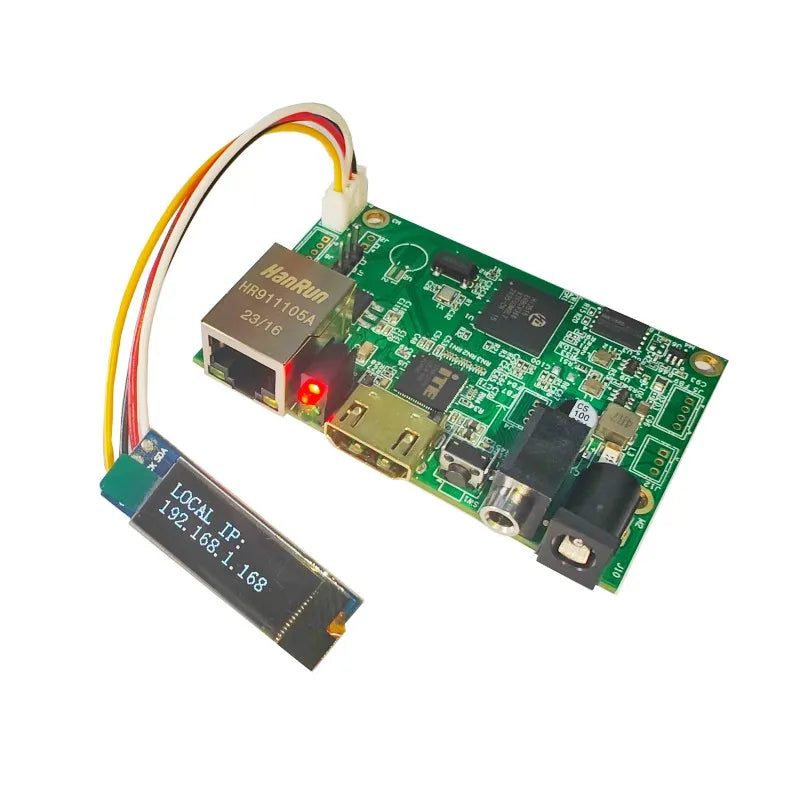

*Board&Oled 0.96 Inch only including board & 0.96inch Oled without Power supply and casing

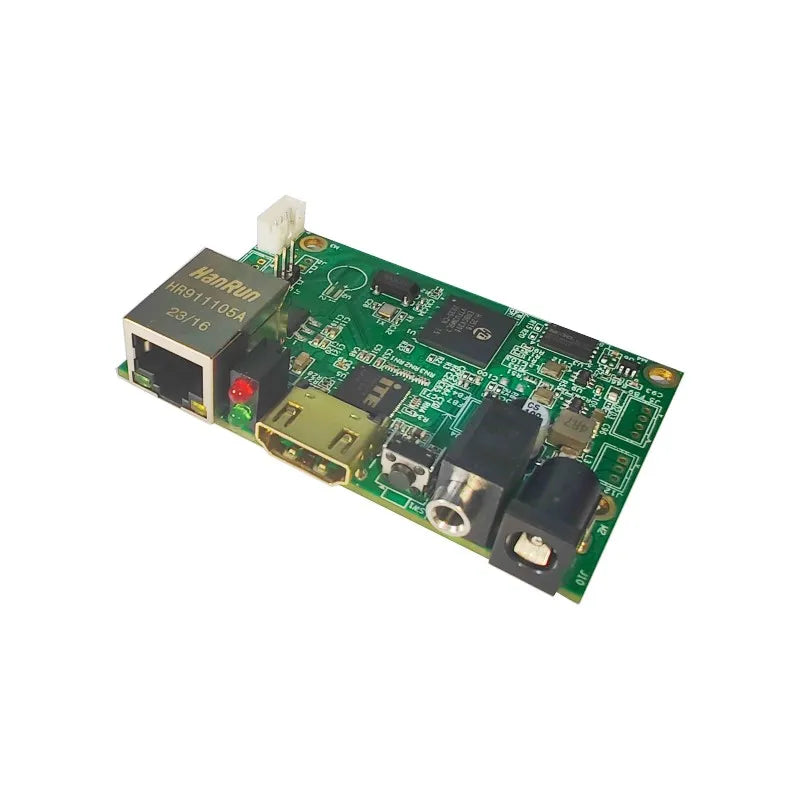

*Board only including board without others

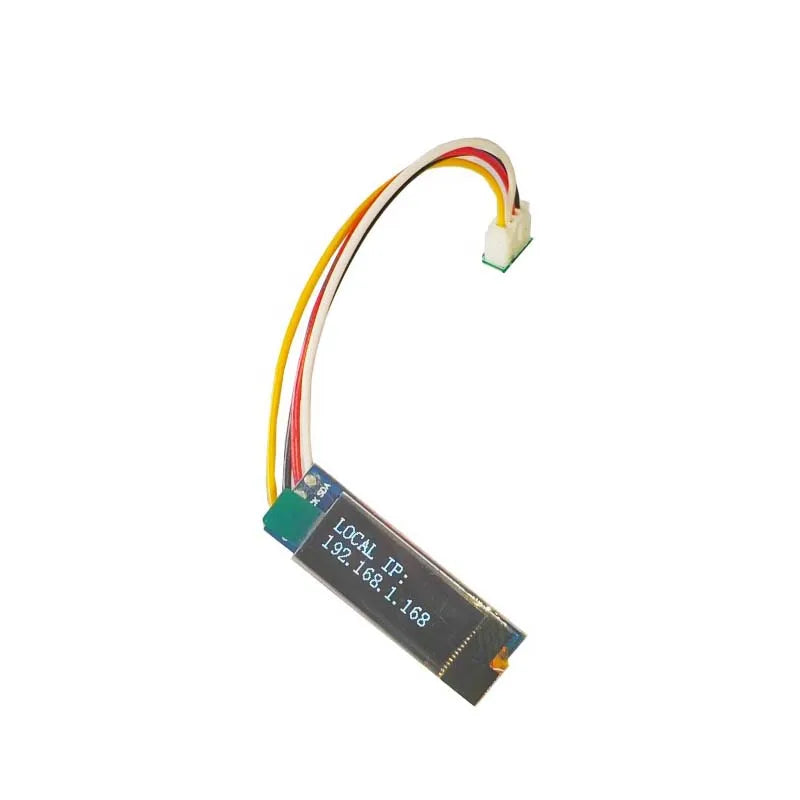

*Oled 0.96 Inch only including Oled 0.96 Inch

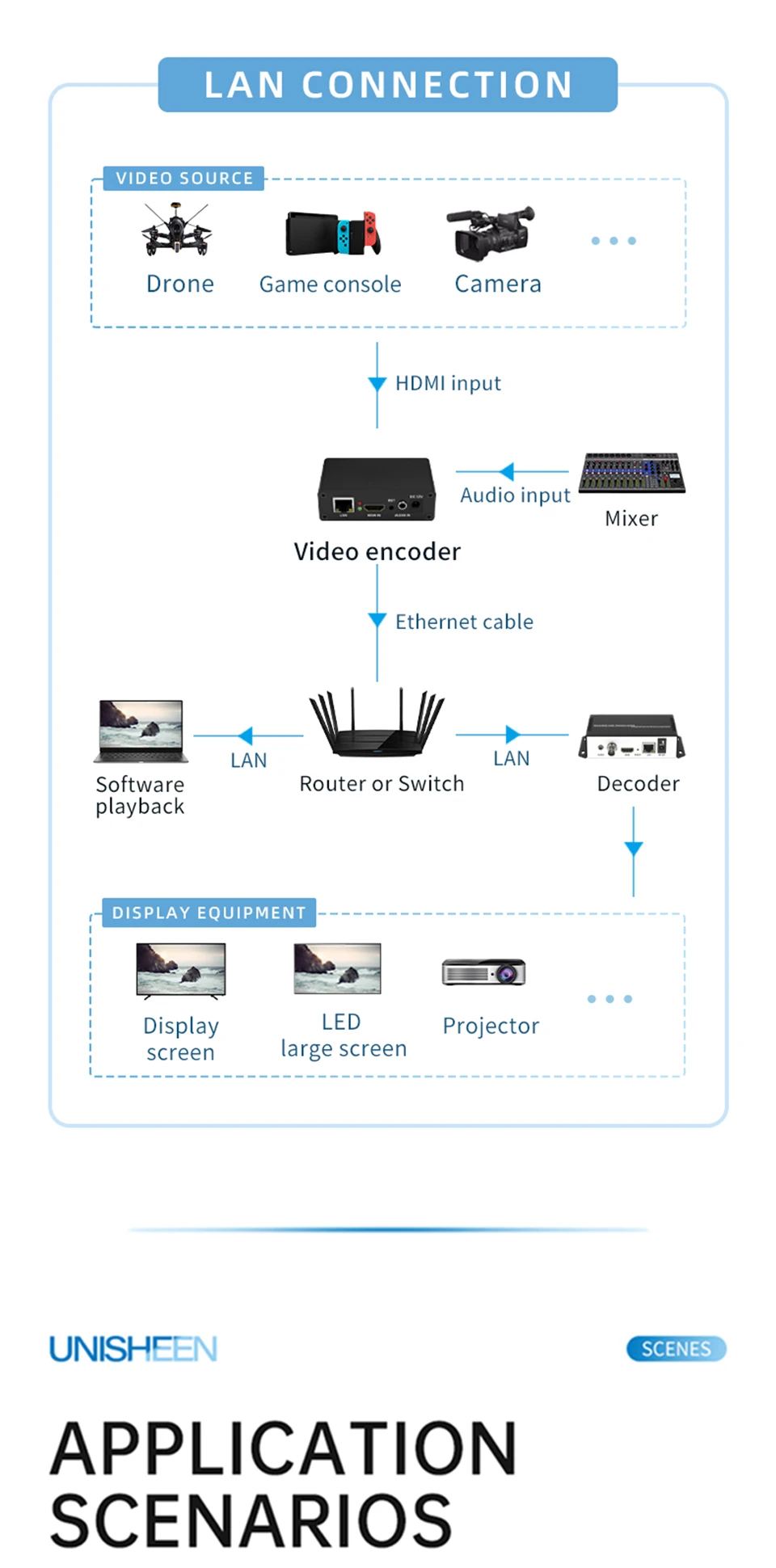

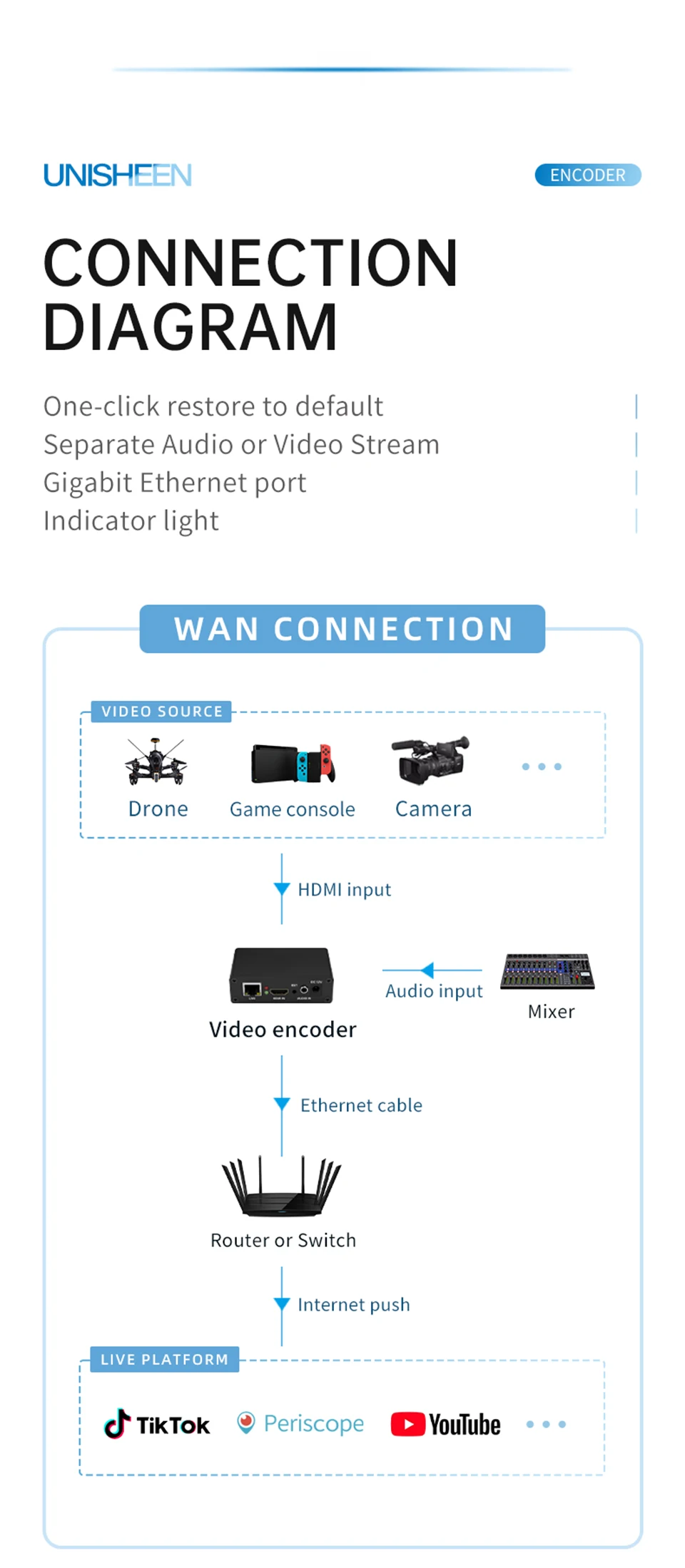

How to working Encoder & Decoder

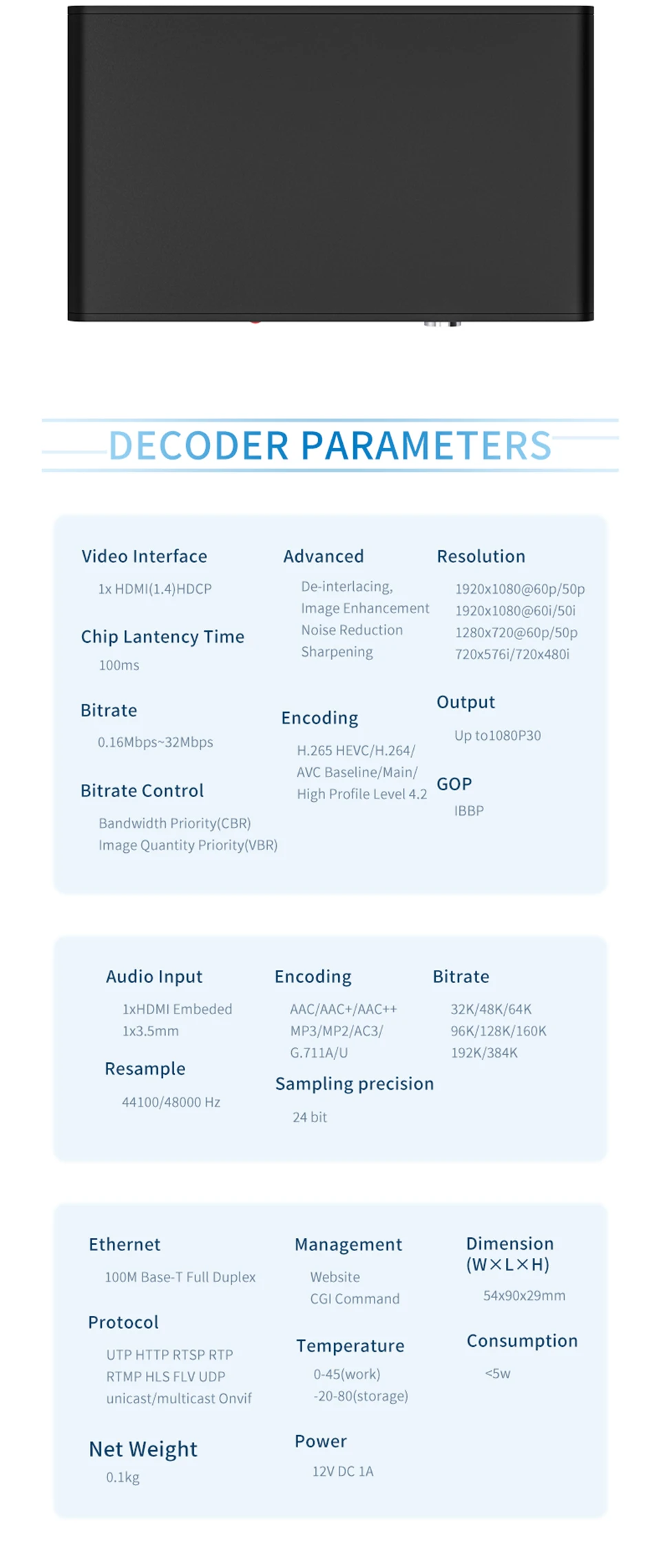

Video |
|
Input |
1x HDMI( 1.4) HDCP |
Resolution |
1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Encoding |
H.265 H.264/AVC Baseline/Main/High Profile Level 4.2 |
Encoding Output FPS |
Up to 1080P30 |
Data Rate |
0.16Mbps~32Mbps |
Rate Control |
CBR/VBR |
GOP Structure |
5-300 |
AdvancedPretreatment |
De-interlacing,Image Enhancement,NoiseReduction,Sharpening |
Latency Time |
100ms |
Audio |
|
Input |
1xHDMI Embeded,1x3.5mm |
Encoding |
AAC/AAC+/AAC++/MP3/MP2/AC3/G.711A/U |
Audio Re-sample Rate |
44100/48000 Hz |
Bit-rate |
32K/48K/64K/96K/128K/160K/192K/384K |
Sampling precision |
24 bit |
System |
|
Ethernet |
100M Base-T Full Duplex |
Protocol |

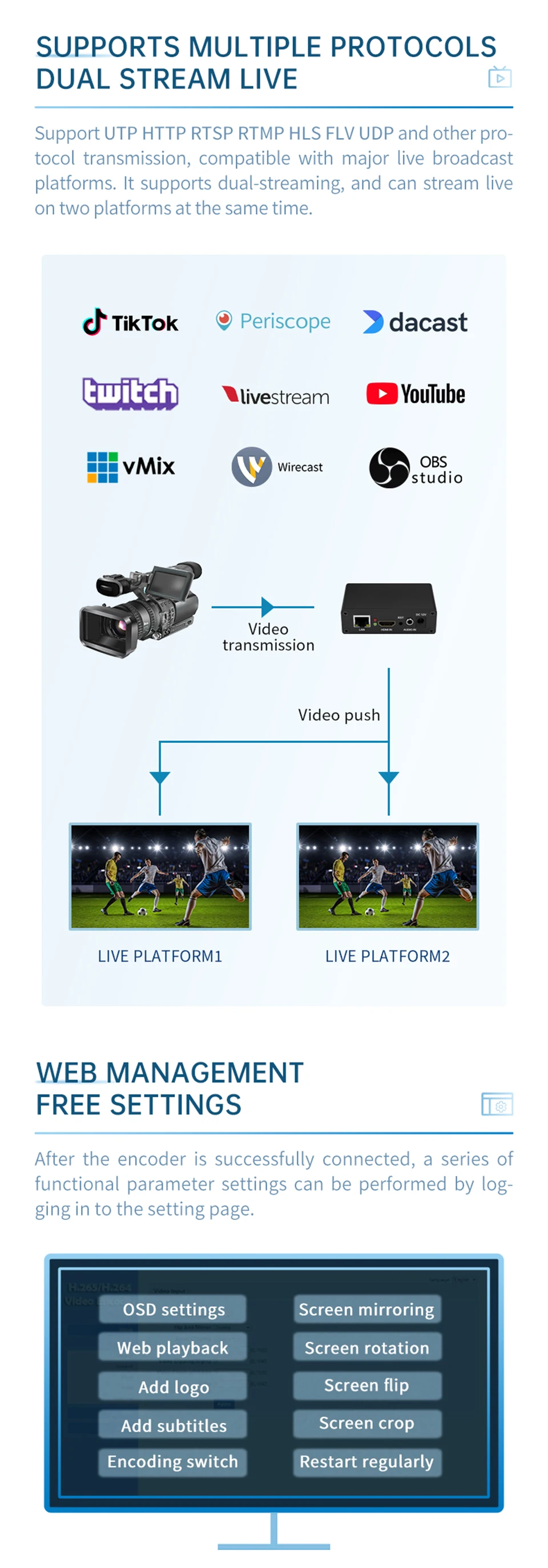

srt/utp/http/rtsp/rtmp/udp/onvif |
controlinterface |
Website or CGI command or App |
General |
|
Dimension(W×L×H) |
54x90x29mm (50x75mm PCBA) |
Net Weight |
0.1kg |
Temperature |
0-45(work),-20-80(storage) |
Power |
9-12V DC 1A |
Consumption |
1.5w |
