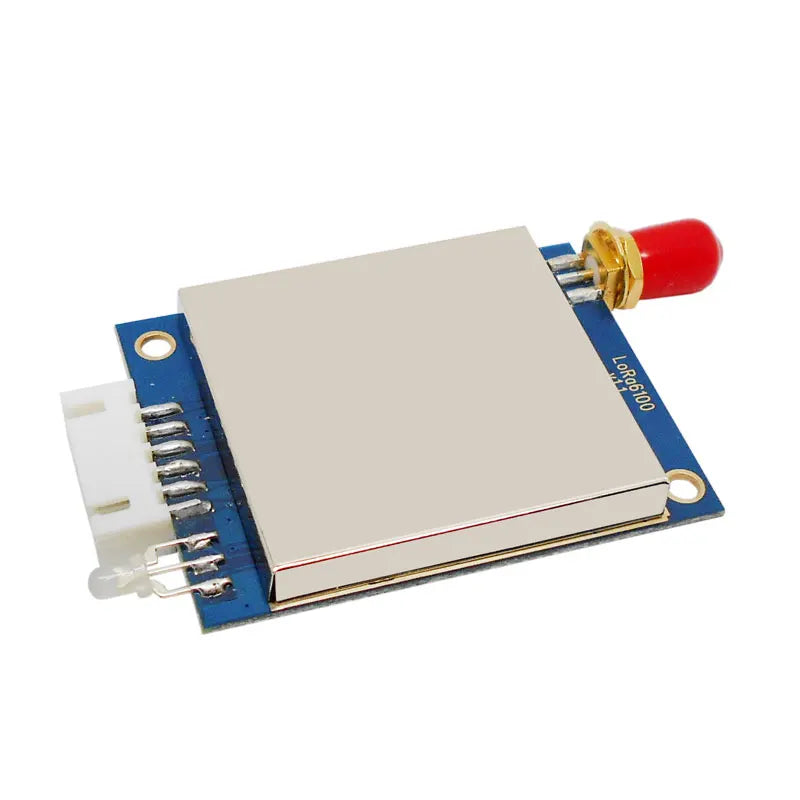

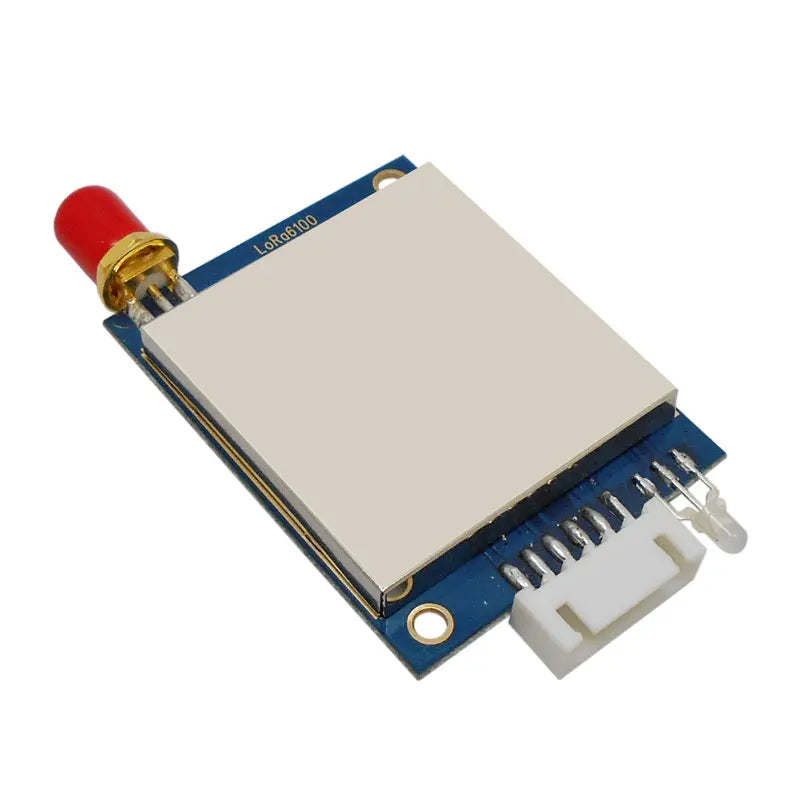

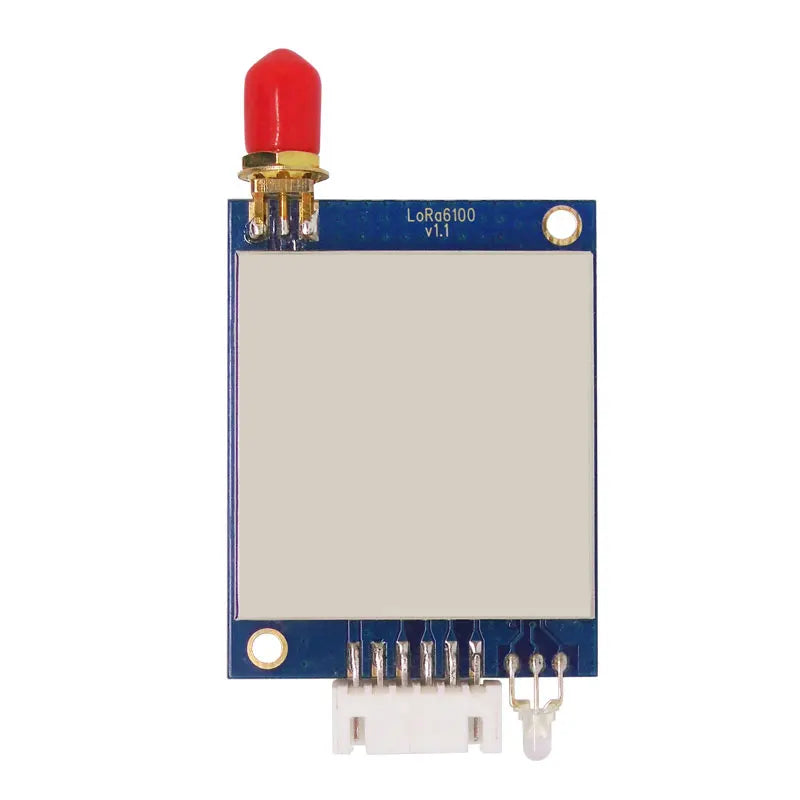

2sets/lot Long range 8km 30dBm 433MHz LoRa data transceiver module Lora6100PRO with UART AES encryption MESH network

• 2pcs long range 1W 433MHz/RS232 wireless LoRa data trasceiver module Lora6100PRO

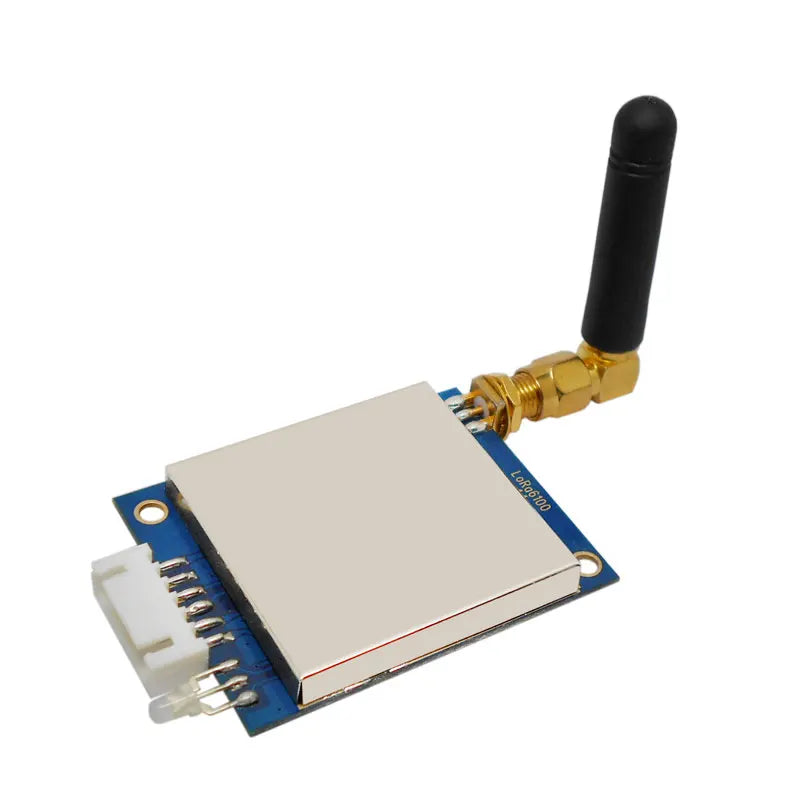

• 2pcs right angel rod antennasSW433-WT100

• 2pcs 6pins connecting cables

• 1pcs USB bridge board SU108-232

 If you need another frequency band 470MHz(1W), 868/915MHz(500mW) or TTL/RS485 interface, just leave message please!

Lora6100PRO is a wireless transceiver data transmission module, based on SX1276/1278 chips from Semtech. This module adopts LORA technology to achieve high effective sensitivity and superior anti-interference. For better security, the module uses AES128 encryption. Lora6100AES has 1W output power and TTL/RS232/RS485 interface for option. It is widely applied in meter reading, remote industrial control, sensors reading, etc

Product Details:

Specifications:

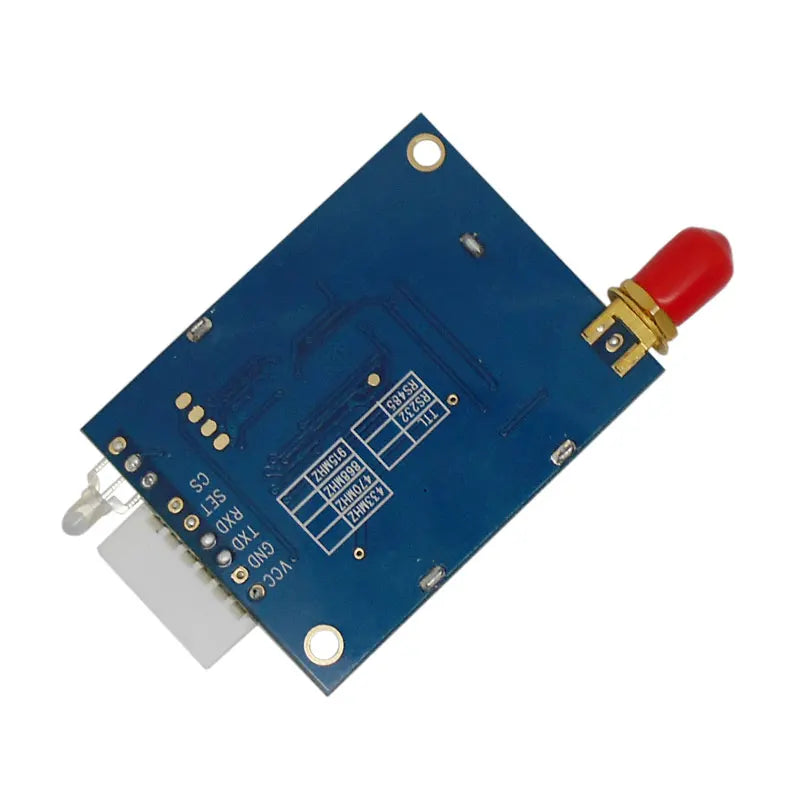

Note: High quality 3.3V LDO is integrated, and Pin CS / SET is 3.3V interface. TXD/RXD is also 3.3V for LoRa6100-TTL

Features:

• Transmission distance in open area up to 8000 meters @ 91bps

• 433/470MHz(1W), 868/915 MHz(500mW)

• 40 channels

• LoRa modulation

• Interface: TTL / RS232 / RS485

• Sensitivity: -139 dBm

• Max output power: 1W /500mW (+30dBm/+27dBm)

• Working voltage: 3.3 ~ 6.5 V

• Working temperature: -40 ~ +85 °C


• Remote control telemetry

• Remote meter reading

• Security system

• Industrial data acquisition

• Home automation

• Wireless data communication

• Access system

• Robot control

Block Diagram:

Setting:

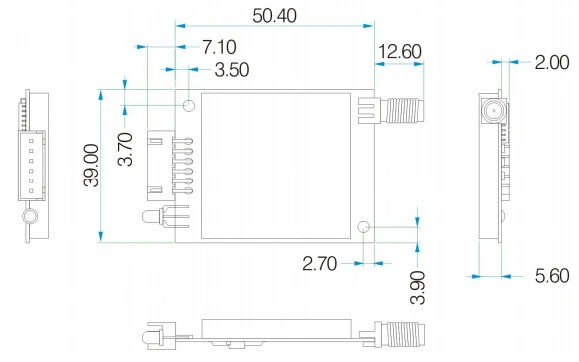

Mechanic dimension:
